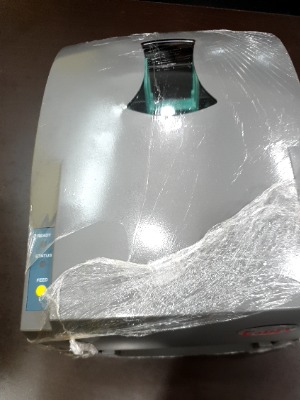

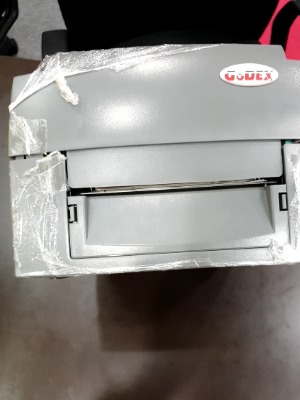

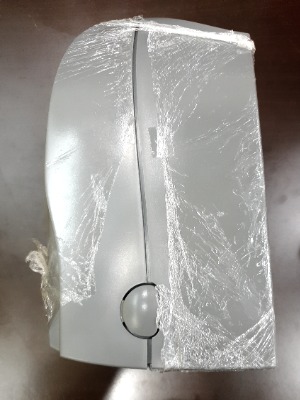

Introduction The "All-Purpose" desktop thermal transfer printer for light to medium duty applications. GoDEX EZ1100Plus is a Value-priced reliable desktop printer which is perfect for medium duty applications. With its highly stability and durability, EZ1100Plus is still the best choice for most general applications. Value-priced reliable desktop printer. Perfect for medium duty applications.

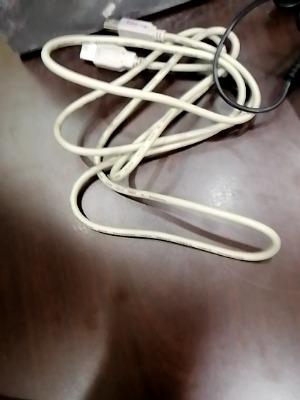

Feature Multi-purpose thermal transfer desktop barcode printer Suitable for product labeling, packaging labeling, and most all other barcode printing applications Large 300M ribbon capacity and 5” media roll 32bit CPU, USB 2.0 port standard Seagull Scientific Windows drivers included Free QLabel software with database function makes it easy to design and print labels Free USB cable and sample media included with every printer Options include: rotary cutter, label dispenser, CF card adapter with RTC, and Ethernet card
Specification | Print Method | Thermal Transfer / Direct Thermal | | Resolution | 203 dpi (8 dots/mm) | | Print Speed | 4 IPS (102 mm/s) | | Print Width | 4.25" (108mm) | | Print Length | Min. 0.16” (4 mm)**; Max. 68” (1727 mm) | | Processor | 32 Bit RISC CPU | | Memory | 4MB Flash (2MB for user storage) / 8MB SDRAM | | Sensor Type | Fixed center aligned see-through sensor, adjustable reflective sensor | | Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.

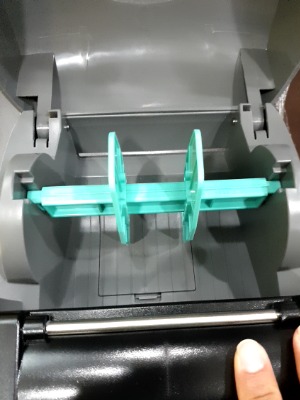

Label roll diameter: Max. 5” (127 mm)
Core diameter: 1", 1.5", 3" (25.4 mm, 38.1 mm, 76.2mm) | | Ribbon | Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)
| | Printer Language | EZPL, GEPL, GZPL | | Software | Label design software: QLabel-IV (for EZPL only)
Driver: Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android | | Resident Fonts | Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable | | Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable | | Barcodes | 1-D Bar codes:
Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5),I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14,HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code | | Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255

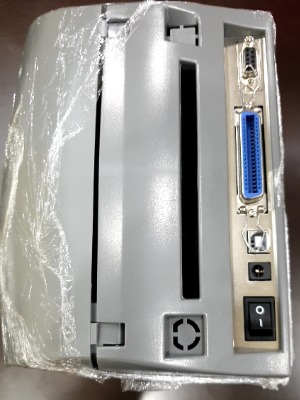

Unicode UTF8、UTF16BE、UTF16LE | | Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software | | Interfaces | Serial port: RS-232 (DB-9)
USB port (default on)
Parallel port: Centronics 36-pin | | Control Panel | Two bi-color LEDs: Ready, Status

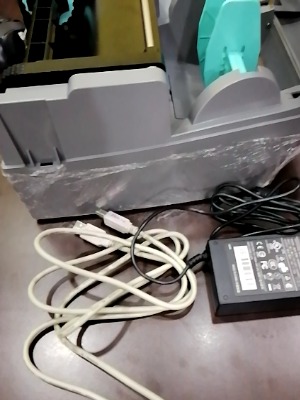

Function Key: FEED | | Power | Auto Switching 100-240VAC, 50-60Hz | | Environment | Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C) | | Humidity | Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing. | | Agency Approvals | CE(EMC), FCC Class A, CB, cUL, CCC | | Dimension | Length: 11.2” (285 mm)
Height: 6.8” (171 mm)
Width: 8.9” (226 mm) | | Weight | 6 lbs (2.72Kg) ,excluding consumables | | Options | Rottary Cutter
Label Dispenser
Ethernet 10/100Mbps print server (default off; disables USB when in use)
802.11 b/g wireless print server (Default off; disables USB when in use)
Real Time Clock with CF card adapter (max. 1GB CF card)
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder | | Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.
** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
