Product Overview
Introduction

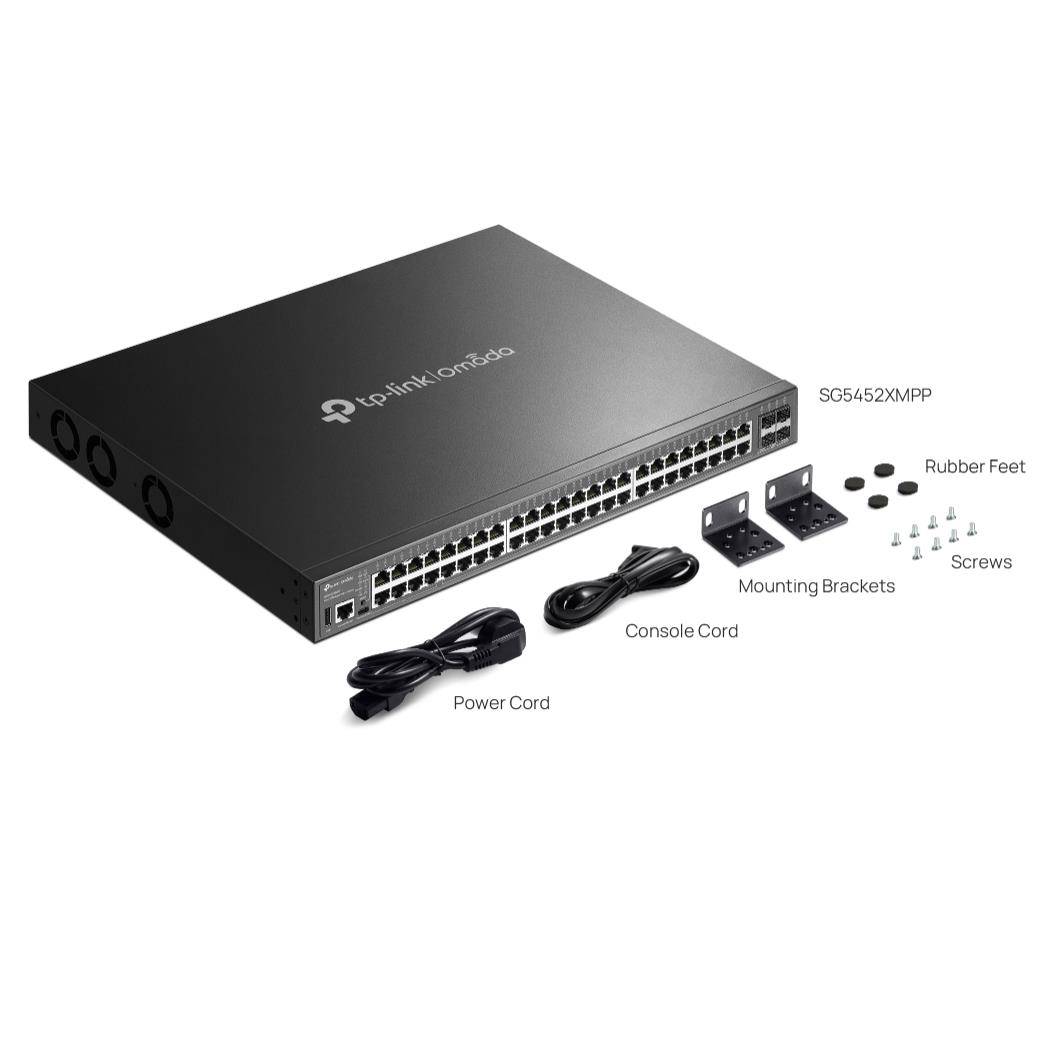

The Omada SG5452XMPP is a high‑performance, entry‑level Layer 3 managed PoE++ switch designed to meet the demands of modern enterprise and SMB access networks. Engineered for scalability, reliability, and centralized management, it delivers powerful switching, advanced routing features, and robust PoE capabilities in a single, space‑efficient solution.
Equipped with 48 Gigabit RJ45 ports, including 8 PoE++ (802.3bt) ports supporting up to 90 W per port and 40 PoE+ (802.3af/at) ports, the SG5452XMPP provides a generous total PoE budget of up to 770 W. This makes it ideal for powering high‑demand devices such as Wi‑Fi 6/6E access points, IP cameras, VoIP phones, and access control systems—without the need for additional power infrastructure.
To ensure high‑speed connectivity and future‑ready network expansion, the switch includes 4 × 10 Gbps SFP+ uplink slots, delivering ample bandwidth for aggregation and core network connections. With a switching capacity of up to 176 Gbps, it supports high‑traffic environments with consistent performance and low latency.
Feature
8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
4× 10 Gbps SFP+ slots
Up to 770W total PoE budget*
Fast PoE and Perpetual PoE
Physical stacking up to 4 units for built-in redundancy and performance
L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
Security strategies: ACL, Port Security, DoS Defend, 802.1X
ERPS supports rapid protection and recovery in a ring topology
Centralized cloud management via the Omada SDN controller
Standalone management via web, CLI, SNMP, and RMON
|
