Product Overview
Introduction

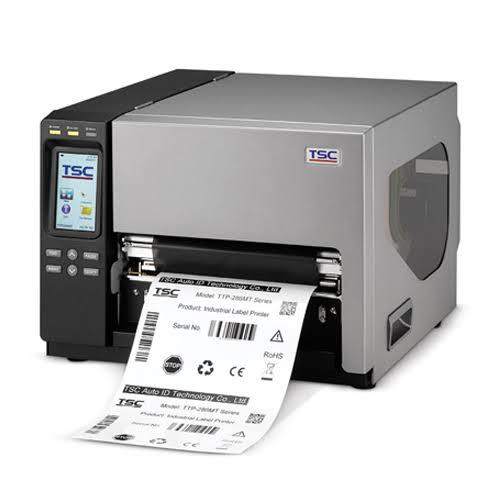

The affordable and easy-to-use TTP-286MT Series wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions. TTP-286MT Series can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution and 8.5 inches at 203 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.
Features
Memory
512 MB Flash memory
256 MB SDRAM
microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Sensors
• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
Processor 32-bit RISC CPU
