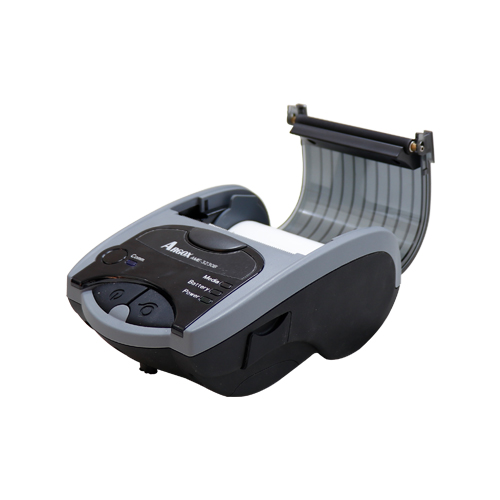

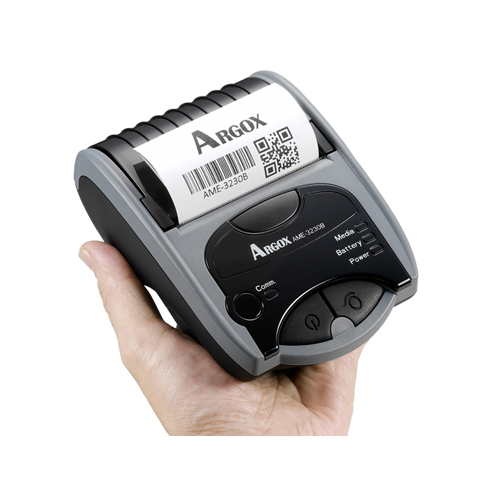

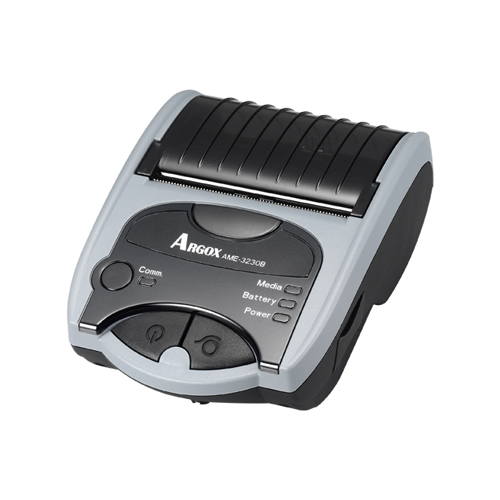

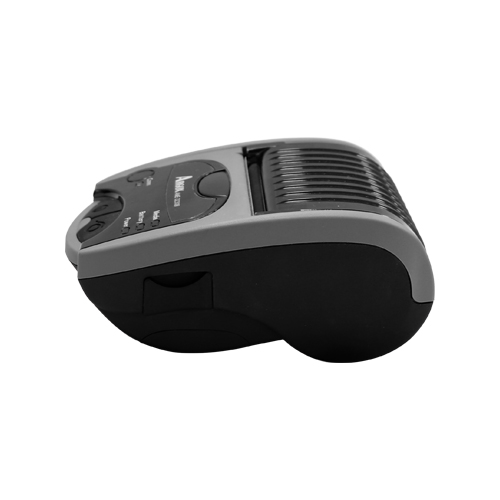

Introduction The AME-3230 is a lightweight, palm-sized mobile printer that allows you to print labels or receipts anywhere you go. For mobile printing applications such as parking tickets, delivery or updating price tags on perishable retail items, the AME-3230 produces quick and simple labels and receipts from 1-inch to 3-inches wide on demand. Carry it on your belt and transmit data to the printer wirelessly using a Bluetooth equipped portable data terminal. High performance features include a 32-bit CPU for up to 3ips printing speed, 203dpi print resolution for text and graphics, and 8M DRAM and 4M Flash ROM memory. The AME-3230 operates for eight hours on one battery charge, and provides smart power management and automatic low battery notification. AME-3230 series possesses IrDA,USB, RS-232, the three standard equipments, and provides luetooth (AME-3230B) and WiFi (AME-3230W) as optional accessories for users to create the most convenient environment. Barcode printing support includes 1D/GS1 Data bar, 2D/Composite codes and QR barcodes. The AME-3230 portable printer provides an exceptionally versatile solution for today’s growing mobile data management requirements. Feature ● Easy to monitor power on when connecting with mobile computer or PDA ● IrDA, USB and RS-232 interfaces as well as Bluetooth connectivity (AME-3230B) ● Buzzer for media-out or cover-not-closed ● Battery operation for eight hours on single charge ● Low battery does not affect print quality ● Quick open/lock of battery cover without tools ● IP54 certified with environmental case | | Printing method | Direct Thermal | | | | Printing resolution | 203 dpi(8 dots/mm) | | | | Printing Speed | 2~ 3ips(51~76mm/s) | | | | Printing Length | 40”(1016mm) | | | | Printing Width | 2.8”(72mm) | | | | Memory | 8MB DRAM(6MB User available), 4MB Flash ROM(3MB User available) | | | | CPU Type | 32 bit RISC microprocessor | | | | Sensors | Media gap/black line sensor, Paper end sensor, Open cover sensor | | | | Operation Interface | LED indicator x 4(Power status/Battery/Media/Communication), Button x 2(Power/Feed) | | | | Communication Interface | RS-232, USB, IrDA, Wireless 802.11b/g | | | | Wireless Security Authentication and Encryption Options | WEP-128, WPA-PSK (TKIP), WPA2-PSK (AES) | | | | Fonts | Internal character sets standard
Ability to print any Windows True Type font easily with help of | | | | 1D Barcodes | Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with | | | | 2D Barcodes | MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes | | | | Graphics | GRF, Hex and GDI | | | | Emulation | PPLZ | | | | Software - Label editing | BarTender | | | | Windows compatibility | Win CE. NET, Pocket PC, Windows Mobile, Windows XP/Vista/7 | | | | Software - Utility | Printer Utility, Font Utility | | | | Media Type | Direct Thermal continuous receipt, Direct Thermal labels, die-cut,
black mark, Direct Thermal sti | | | | Media | Recommended Printing Width: Label/Ticket: 3”(78.5mm) 【Max roll capacity(OD): 2.2”(57mm)】
Receipt: | | | | Drop protection | 1.5m | | | | Dimensions | W 106mm x H 70mm x L 153mm | | | | Weight | 670g (Printer + Battery + 3” width OD 2.2” Paper roll) | | | | Power Source | 100-240VAC 50-60 Hz Input; 9 VDC 1.56 A output | | | | Battery | Rechargeable 7.4V Lithium-ion, 2200mAh, Operating 8 hours, standby 14 hours | | | | Standard Item | Belt clip, Battery, AC adapter, Cleaning tool, A roll of receipt paper, Quick guide, DVD-ROM | | | | Operation Environment | Operation Temperature: 14°F~122°F (-10°C~50°C)**
Storage Temperature: -4°F~140°F (-20°C~60°C)
| | | | Optional Items | Shoulder Strap, Environmental case, Lithium-ion Battery, Single Battery Charger, 4 Bay Battery Charg | | | | Agency Listing | CE, FCC, cTUVus, CCC, RoHS | | | | Attention | **Special configuration
*This data sheet is for informational purposes only. Argox makes no warra | | | | | | |
|
