Understand MC9300 series mobile computer base on it part number, select the correct part number for your application
26/Aug/2019

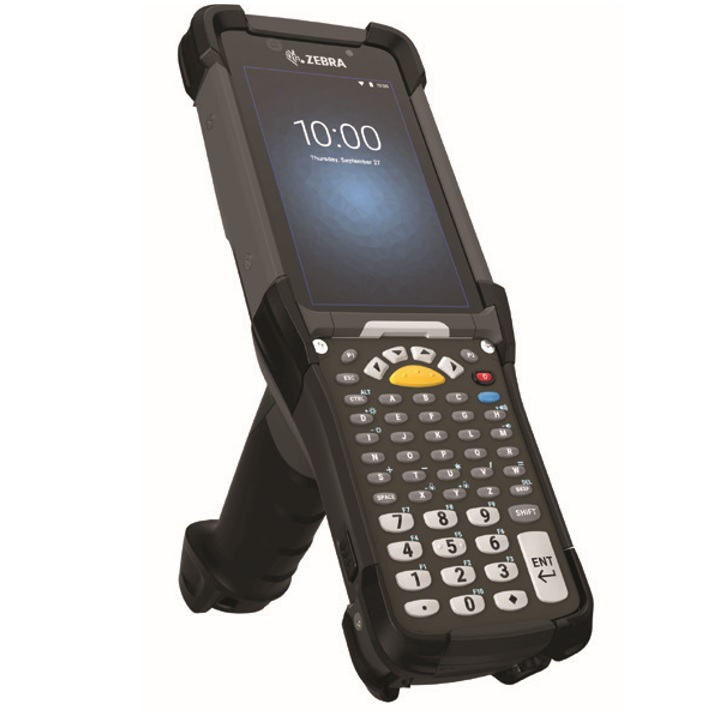

The MC9300 is a fully keyed premium mobile computer with a large display that offers reliable operation in the warehouse, manufacturing, and retail backroom use cases. The MC9300G base configurations offers premium ruggedness device with a 2.2GHz Processor, 4GB/32GB memory, 6 keypad options 29, 34, 43, 53 (stnd, VT, 5250) key combined with 3 scanner options including SE965, SE4750, and SE4850 extended range imager all on an updated model platform.
| Family | ??XXXX- | | | | | MC | = | Mobile Computer | | | | | | | Series | MC?? | | | | | 93 | = | 9300 Series | | | | | | | WAN | MC93?X- | | | | | 0 | = | None | | | | | | | Wireless Radio Option | MC930?- | | | | | B | = | 802.11a/b/g/n/d/h/i/k/r/ac + BT 5.1 + 2x2 MuMIMO - SD660 | | | P | = | 802.11a/b/g/n/d/h/i/k/r/ac + NFC+ BT 5.1 + 2x2 MuMIMO - SD660 + Vibe | | | | | | | Dash | MC930X- | = | Dash | | | | | | | Form Factor | MC930X-? | | | | | G | = | Gun | | | | | | | Environment | MC930X-X? | | | | | F | = | Freezer | | | S | = | Standard | | | | | | | Scan Engine | MC930X-XX? | | | | | A | = | SE965 1D Standard Range Laser | | | B | = | SE965 1D Laser + Front/Rear Camera | | | C | = | SE4750 Standard Range Imager | | | D | = | SE4750 SR+ Front/Rear Camera | | | E | = | SE4850 Extended Range | | | F | = | SE4850 Extended Range + Front/Rear Camera | | | G | = | SE4750 Direct Part Mark | | | | | | | | | | | | | | | | | Keypad | MC930X-XXX? | | | | | A | = | 29 Key Numeric | | | B | = | 34 Key Function Numeric | | | C | = | 43 Key Function Numeric | | | D | = | 53 Key Standard Alpha Numeric | | | E | = | 53 Key Virtual Terminal | | | G | = | 53 Key 5250 Emulation | | | H | = | 58 Key Alpha Numeric | | | | | | | | | | | | Operating System | MC930X-XXXXX? | | | | | A | = | Andriod 7.x with Mx | | | G | = | Andriod 7.x GMS with Mx | | | | | | | Memory | MC930X-XXXXXX? | | | | | 4 | = | Premium 4GB/32GB | | | 6 | = | Premium 4GB/64GB | | | | | | | Country | MC930X-XXXXXXX?? | | | | | NA | = | "US, Canada, Puerto Rico | | | RW | = | Rest of World WLAN excluding North America | | | TN | = | Tunisia | | | IN | = | India | | | CN | = | China | | | | | | | Dash | MC930X-XXXXXXXX?? | = | Dash | | | | | | | Option | MC930X-XXXXXXXXX?? | | | | | T
A | | TAA Compliant | | | NI | | Non Incendive Class 1 Div 2 | | | TI | | TAA Compliant + Non Incendive Class 1 Div 2 |
| MC930B-GSAEG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 1D Laser SE965, 4.3" display, 53 Key VT, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSAGG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 1D Laser SE965, 4.3" display, 53 Key 5250 emulation, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSADG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 1D Laser SE965, 4.3" display, 53 Stnd Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSECG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Long Range Imager SE4850, 4.3" display, 43 Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSCBG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Imager SE4750, 4.3" display, 34 Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSABG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 1D Laser SE965, 4.3" display, 34 Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSCCG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Imager SE4750, 4.3" display, 43 Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSCDG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Imager SE4750, 4.3" display, 53 Stnd Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSEEG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Long Range Imager SE4850, 4.3" display, 53 Key VT, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSEBG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Long Range Imager SE4850, 4.3" display, 34 Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSEGG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Long Range Imager SE4850, 4.3" display, 53 Key 5250 Emulation, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSCGG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Imager SE4750, 4.3" display, 53 Key 5250 Emulation, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSEDG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Long Range Imager SE4850, 4.3" display, 53 Stnd Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSCEG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 2D Imager SE4750, 4.3" display, 53 Key VT, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World | | MC930B-GSACG4RW | Gun, 802.11 a/b/g/n/ac, Bluetooth, 1D Laser SE965, 4.3" display, 43 Key, 7000MAH Battery, Android GMS, 4GB RAM/32GB FLASH, Rest of World |
|
